DLC-350 is a 5 Watt LED low profile recessed downlight featuring interchangeable trims. Powered by a single 5W High Power LED chip, this high performance cabinet light is great in applications where high levels of illumination are desired. An overall thickness of only 1” makes it ideal for low profile installations and applications. While providing 460 Lumens of light output, the DLC-350 gives out very little heat.

FEATURES

■ 5-Watt LED High-Output
■ 12V DC
■ 460 Lumens
■ 27K / 30K / 40K
■ 85+ CRI
■ 40º Lens
■ Interchangeable Trims: Select from 5 different finishes
■ Dimmable
■ Recessed Mounting

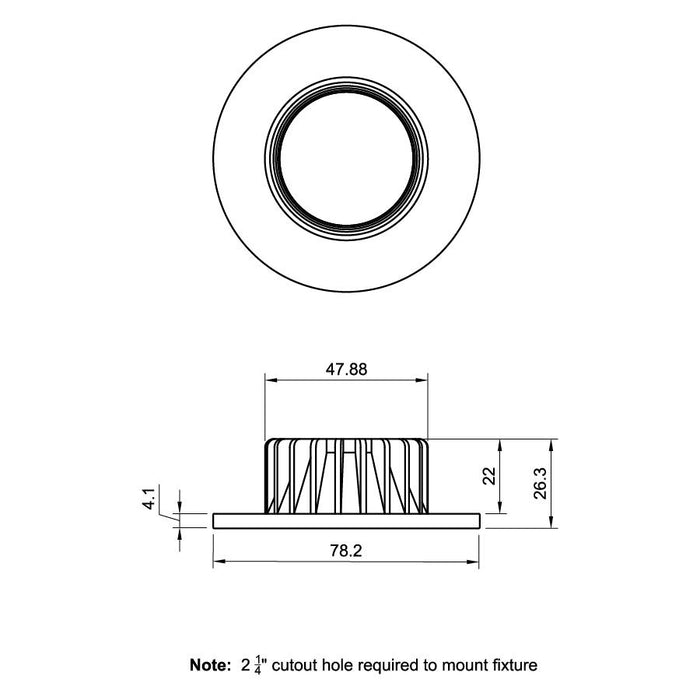

■ 2^1/4″ cutout required to install fixture
■ MLV / ELV / TRIAC

SPEC SHEET (PDF)

TECHNICAL DRAWING (PDF)

INSTALLATION GUIDE (PDF)

BASIC WIRING GUIDE (PDF)
