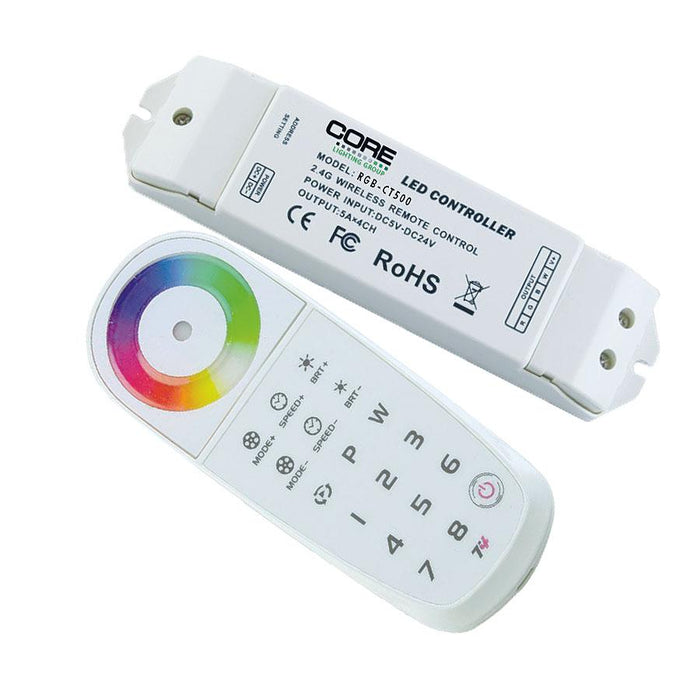

RGB CT-500
RGB+W TOUCH SERIES CONTROLLER
The RGB-CT500 Zone Color Control System controls up to 8 independent zones of RGBW (Red, Green, Blue, and White) light. With the addition of white light, brighter colors can be achieved as well as the introduction of the pastel range, which will satisfy color requirements for the most discerning lighting designers.
Handheld Remote and Receiver sold separately. Up to 8 receivers may be paired to a single remote. Multiple remotes cannot be paired to a single receiver.
■ RGB+W zone receiver
■ Control up to 8 receivers with one remote
■ Color wheel picker
■ Up to 8 custom modes
■ USB rechargable RF remote control
■ Remote range up to 99 ft.
QUICK SPECS (RGB CT-500 CONTROLLER)
| POWER INPUT | 5V-24V DC |
| MAX CURRENT LOAD | 5A x 4CH 20A Max |
| MAX OUTPUT POWER | 100W (5V) / 240W (12V) / 480W(24V) |
| CONTROL TYPE | PWM (Pulse Width Modulation) |
| AMBIENT TEMPERATURE | -30ºC~50ºC |
| OPERATING TEMPERATURE | -30ºC~55ºC |
| ENVIRONMENT | Indoor / Dry Location Only |

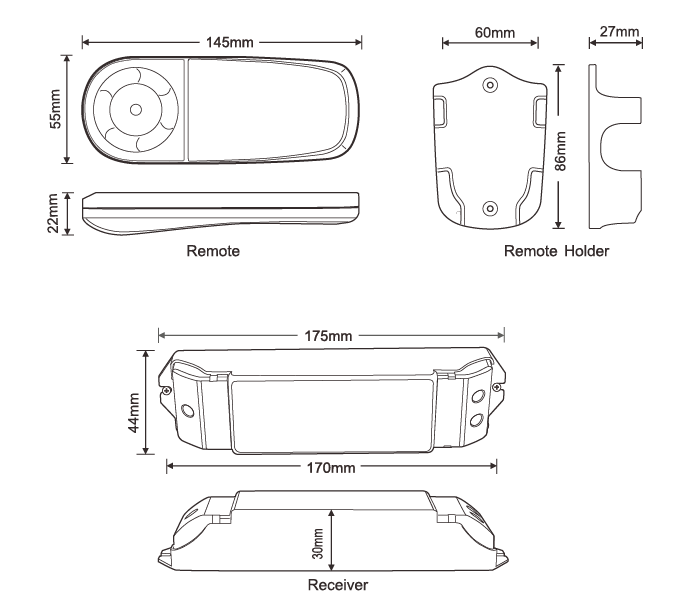

| DIMENSIONS | L x W x H (6.9″ x 1.8″ x 1.2″) |
QUICK SPECS (RGB-CT500RX HANDHELD REMOTE)
| VOLTAGE | DC5V (Built-in Lithium Battery) |
| WORKING FREQUENCY | 2.4 GHz |
| REMOTE DISTANCE | up to 99 Ft. |
| STANDBY TIME | up to 6 months |
| REMOTE OPTION | SYNC or ZONE Control (8 zones) |
| AMBIENT TEMPERATURE | -20ºC~50ºC |
| OPERATING TEMPERATURE | -20ºC~55ºC |
| DIMENSIONS | L x W x H (5.7″ x 2.2″ x 0.8″) |
| WEIGHT | 7 Oz. |
