Core Lighting RGB DMX-4C-RJ45 4 CHANNEL RGB / RGB+W DMX DECODER
Core Lighting RGB DMX-4C-RJ45 4 CHANNEL RGB / RGB+W DMX DECODER
RGB DMX-4C-RJ45
4 CHANNEL RGB / RGB+W DMX DECODER

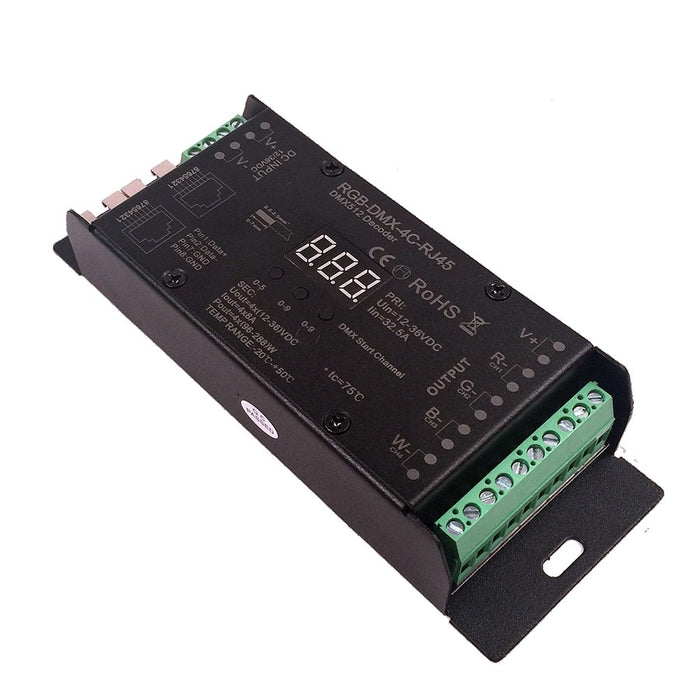

The RGB-DMX-4C is a constant voltage DMX512 decoder with 3 channel or 4 channel selectable, 5A per channel output. It is a highly reliable cost effective decoder. There are two categories of constant voltage output and constant current output. It is addressable with a 4-channel output, designed with DMX512 compliant control interface. It features a digital address display and RJ45 data ports.
FEATURES
■ 12V-36V DC
■ 400W Output
■ Constant voltage DMX512 decoder
■ 3 or 4 channel selectable output
■ DMX512 compliant control interface
■ 5A per Channel
■ Compatible with RGB and RGB+W systems
■ Compatible with 12V DC and 24V DC systems
■ DMX addressable
■ Digital display
■ RJ45 Data Ports
PRODUCT DOWNLOADS
RGBRJ45SPECV.2 (PDF)
DMX WIRING GUIDE (PDF)
