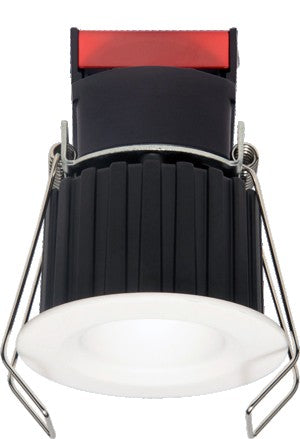

Elco 1" Round Recessed Oak Downlight 6.1W, 2700K - SunsetK, 450 lm - 675 lm
38° / 27K / All White
$61.49
Sale price
$61.49
Regular price
$80.91
Skip to product information
Product SKU
Elco 1" Round Recessed Oak Downlight 6.1W, 2700K - SunsetK, 450 lm - 675 lm
$61.49
Sale price
$61.49
Regular price
$80.91
Small aperture 12V AC Downlight delivers over 600 lumens. More than a traditional 50W MR16 Halogen Lamp. Requires 12V AC Transformer (daisy chain up to 6). Dimmable ELV, MLV or 0-10V depending on transformer used.
- Requires 12V AC transformer. Dimmable ELV, MLV or 0-10V depending on transformer used.
- IC Airtight for use with direct contact to insulation

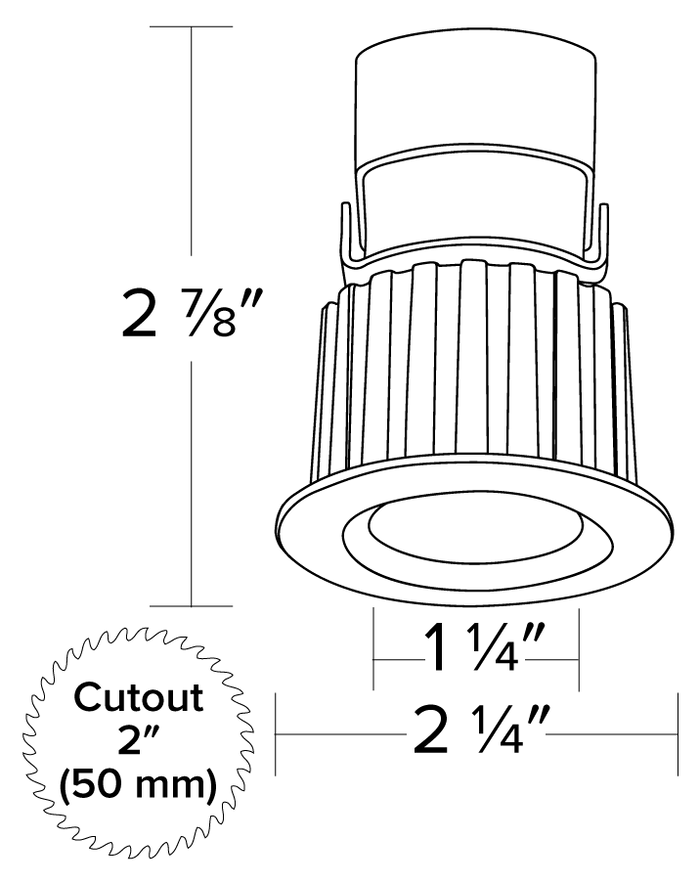

- Height allows for use in ceilings with under 3" depth. Ceiling thickness can be reduced from fixture depth.
- Daisy chain up to 6 fixtures with E1LDRV60
- 38° Standard beam with optional 28° and 50°
- Remodel requires no frame. New construction E1LF1 frame available.
- Wet Location Rated for Indoor and Outdoor Use
- JA8-2016-E & UL listed.
- Life Span 50,000 Hours L70
Resources & Downloads
- Specifications
Oak System Catalog (ELCAT1055)
- 1" Oak System
- Oak System ELV Dimmer List
- Oak System MLV Dimmer List
-
IES Files
- E1L02F30 IES File
- E1L02F40 IES File
- E1L02N30 IES File
- E1L02N40 IES File
- E1L02W27 IES File
Product SKU
| Catalog Number | Lamp type | Wattage | CCT | Lumens | Voltage | Dimming | Beam Angle | Finish |
| E1L02F27W | LED | 6.1W | 2700K | 600 lm | 12V AC | Yes | 38° | All White |
| E1L02F30W | LED | 6.1W | 3000K | 625 lm | 12V AC | Yes | 38° | All White |
| E1L02F35W | LED | 6.1W | 3500K | 650 lm | 12V AC | Yes | 38º | All White |
| E1L02F40W | LED | 6.1W | 4000K | 675 lm | 12V AC | Yes | 38° | All White |
| E1L02FSDW | LED | 6.1W | SunsetK | 450 lm | 12V AC | Yes | 38° | All White |
| E1L02NF30W | LED | 6.1W | 3000K | 625 lm | 12V AC | Yes | 28° | All White |
| E1L02WF27W | LED | 6.1W | 2700K | 600 lm | 12V AC | Yes | 50° | All White |
| E1L02F27B | LED | 6.1W | 2700K | 600 lm | 12V AC | Yes | 38° | Black w/White Ring |
| E1L02F30B | LED | 6.1W | 3000K | 625 lm | 12V AC | Yes | 38° | Black w/White Ring |
| E1L02F35B | LED | 6.1W | 3500K | 650 lm | 12V AC | Yes | 38º | Black w/White Ring |
| E1L02F40B | LED | 6.1W | 4000K | 675 lm | 12V AC | Yes | 38° | Black w/White Ring |
| E1L02FSDB | LED | 6.1W | SunsetK | 450 lm | 12V AC | Yes | 38° | Black w/White Ring |
| E1L02F27BZ | LED | 6.1W | 2700K | 600 lm | 12V AC | Yes | 38° | All Bronze |
| E1L02F30BZ | LED | 6.1W | 3000K | 625 lm | 12V AC | Yes | 38° | All Bronze |
| E1L02F35BZ | LED | 6.1W | 3500K | 650 lm | 12V AC | Yes | 38° | All Bronze |
| E1L02F40BZ | LED | 6.1W | 4000K | 675 lm | 12V AC | Yes | 38° | All Bronze |
| E1L02FSDBZ | LED | 6.1W | SunsetK | 450 lm | 12V AC | Yes | 38° | All Bronze |
| E1L02NF30BZ | LED | 6.1W | 3000K | 625 lm | 12V AC | Yes | 28° | All Bronze |
| E1L02NF35BZ | LED | 6.1W | 3500K | 650 lm | 12V AC | Yes | 28° | All Bronze |
| E1L02WF40BZ | LED | 6.1W | 4000K | 675 lm | 12V AC | Yes | 50° | All Bronze |
| E1L02WF27BZ | LED | 6.1W | 2700K | 600 lm | 12V AC | Yes | 50° | All Bronze |
| E1L02F27H | LED | 6.1W | 2700K | 600 lm | 12V AC | Yes | 38° | Haze w/White Ring |
| E1L02F30H | LED | 6.1W | 3000K | 625 lm | 12V AC | Yes | 38° | Haze w/White Ring |
| E1L02F35H | LED | 6.1W | 3500K | 650 lm | 12V AC | Yes | 38º | Haze w/White Ring |
| E1L02F40H | LED | 6.1W | 4000K | 675 lm | 12V AC | Yes | 38° | Haze w/White Ring |
| E1L02FSDH | LED | 6.1W | SunsetK | 450 lm | 12V AC | Yes | 38° | Haze w/White Ring |
| E1L02NF30H | LED | 6.1W | 3000K | 625 lm | 12V AC | Yes | 28° | Haze w/White Ring |
| E1L02F27BB | LED | 6.1W | 2700K | 600 lm | 12V AC | Yes | 38° | All Black |
| E1L02F30BB | LED | 6.1W | 3000K | 625 lm | 12V AC | Yes | 38° | All Black |
| E1L02F35BB | LED | 6.1W | 3500K | 650 lm | 12V AC | Yes | 38º | All Black |
| E1L02F40BB | LED | 6.1W | 4000K | 675 lm | 12V AC | Yes | 38° | All Black |
| E1L02FSDBB | LED | 6.1W | SunsetK | 450 lm | 120V AC | Yes | 38° | All Black |
