Elco - 4" LED Light Engine with Drop Glass Reflector Trim (1600 lm)

1600 lm / 2700K / All White
$60.84
$60.84 $78.00
Skip to product information

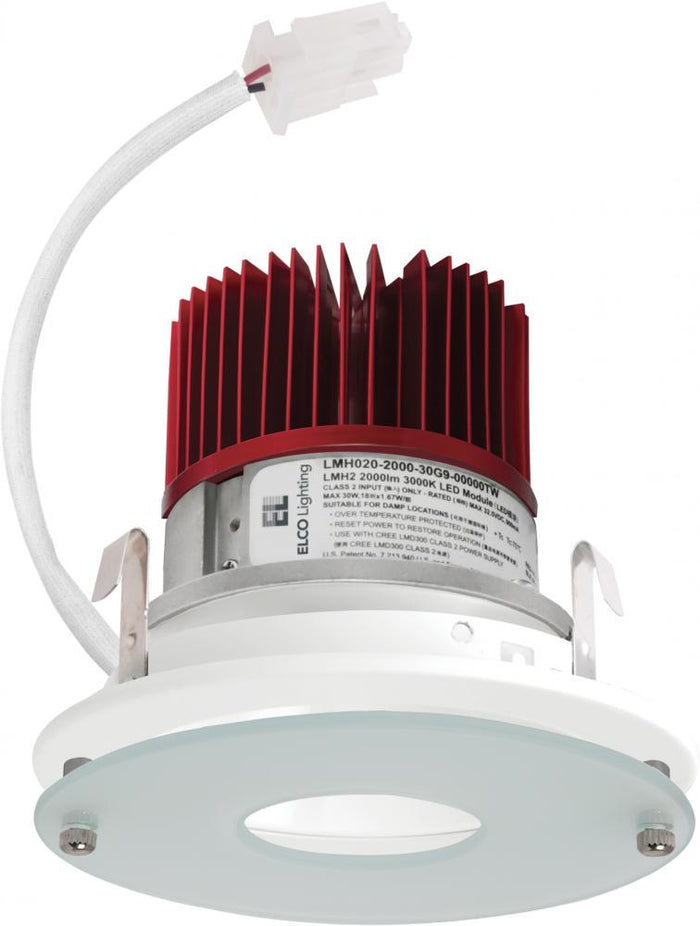

Elco - 4" LED Light Engine with Pinhole Trim (1600 lm) - Ready Wholesale Electric Supply and Lighting
  • Elco - 4" LED Light Engine with Pinhole Trim (1600 lm) - Ready Wholesale Electric Supply and Lighting
  • Elco - 4" LED Light Engine with Pinhole Trim (1600 lm) - Ready Wholesale Electric Supply and Lighting
Elco - 4" LED Light Engine with Drop Glass Reflector Trim (1600 lm)

Elco - 4" LED Light Engine with Drop Glass Reflector Trim (1600 lm)

$60.84
$60.84 $78.00
Lumens1600 lm
Color Temp.
Finish
8.76W - 18W, 2700K - SunsetK, 850 lm - 1600 lm

The perfect lighting solution for high-end residential and light commercial projects.
  • High efficacy LED module.
  • Triac/ELV/0-10V dimming.
  • Must be used with ELCO 4" Cedar™ System Housings.
  • Frosted acrylic module lens for even lumen distribution.
  • Life span of 50,000 hours L70.
  • USA designed and assembled.
  • Limited 5 year warranty.
  • 2 at the end of the item number denotes Generation 2. Please note Gen 2 and Gen 1 are not cross compatible.
Wattage: 8.76W - 18W
Lumens: 850 lm - 1600 lm
Color Temp: 2700K - SunsetK
Lamp Type: LED
Beam Angle: 60° - 60º
CRI: 93+
Damp Location: Listed
Elco - 4" LED Light Engine with Drop Glass Reflector Trim (850 lm or 1250 lm)

Resources & Downloads

  • Specifications
  • PDF icon Featured In: Electrical News
  • PDF icon Cedar System Catalog (ELCAT1047)
  • PDF icon Cedar Dimmer Compatibility List



Product SKU

Catalog Number Lamp type Wattage CCT Lumens Beam Angle
E412C1627W2, E412C1627B2, E412C1627C2, E412C1627H2, E412C1627BZ2, E412C1627BB2, E412C1627MW2, E412C1627MB2 LED 18W 2700K 1600 lm 60°
E412C1630W2, E412C1630B2, E412C1630C2, E412C1630H2, E412C1630BZ2, E412C1630BB2, E412C1630MW2, E412C1630MB2 LED 18W 3000K 1600 lm 60°
E412C1635W2, E412C1635B2, E412C1635C2, E412C1635H2, E412C1635BZ2, E412C1635BB2, E412C163MW2, E412C1635MB2 LED 18W 3500K 1600 lm 60°
E412C1640W2, E412C1640B2, E412C1640C2, E412C1640H2, E412C1640BZ2, E412C1640BB2, E412C1640MW2, E412C1640MB2 LED 18W 4000K 1600 lm 60°
E412C1650W2, E412C1650B2, E412C1650C2, E412C1650H2, E412C1650BZ2, E412C1650BB2, E412C1650MW2, E412C1650MB2 LED 18W 5000K 1600 lm 60º
E412C16SDW, E412C16SDB, E412C16SDC, E412C16SDH, E412C16SDBZ, E412C16SDBB, E412C16SDMW, E412C16SDMB LED 18W SunsetK 1600 lm 60°
