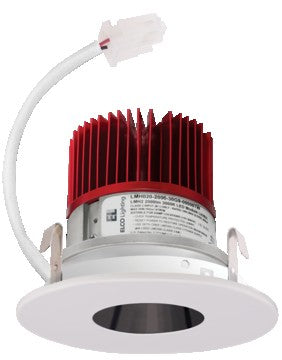

Elco - 4" LED Light Engine with Pinhole Trim (1600 lm)

1600 lm / 2700K / All White
$49.14
$49.14 $78.00
Skip to product information
Elco - 4" LED Light Engine with Pinhole Trim (1600 lm) - Ready Wholesale Electric Supply and Lighting
  • Elco - 4" LED Light Engine with Pinhole Trim (1600 lm) - Ready Wholesale Electric Supply and Lighting
  • Elco - 4" LED Light Engine with Pinhole Trim (1600 lm) - Ready Wholesale Electric Supply and Lighting
Elco - 4" LED Light Engine with Pinhole Trim (1600 lm)

Elco - 4" LED Light Engine with Pinhole Trim (1600 lm)

$49.14
$49.14 $78.00
Lumens1600 lm
Color Temp.
Finish

9.6W - 18W, 2700K - SunsetK, 850 lm - 1600 lm

  • High efficacy LED module.
  • Triac/ELV/0-10V dimming.
  • Must be used with ELCO 4" Cedar™ System Housings.
  • Frosted acrylic module lens for even lumen distribution.
  • Life span of 50,000 hours L70.
  • USA designed and assembled.
  • warranty. 5 year Limited.
  • 2 at the end of the item number denotes Generation 2. Please note Gen 2 and Gen 1 are not cross compatible.
Wattage: 9.6W - 18W
Lumens: 850 lm - 1600 lm
Color Temp: 2700K - SunsetK
Lamp Type: LED or LED
Beam Angle: 60º
Elco - 4" LED Light Engine with Pinhole Trim (1600 lm)

Resources & Downloads

  • Specifications
  • PDF icon Cedar Dimmer Compatibility List



Product SKU

Catalog Number Lamp type Wattage CCT Lumens Beam Angle Finish
E429C1627W2 LED 18W 2700K 1600 lm 60º All White
E429C1627B2 LED 18W 2700K 1600 lm 60º Black w/White Ring
E429C1627C2 LED 18W 2700K 1600 lm 60º Chrome w/White Ring
E429C1630W2 LED 18W 3000K 1600 lm 60º All White
E429C1630B2 LED 18W 3000K 1600 lm 60º Black w/White Ring
E429C1630C2 LED 18W 3000K 1600 lm 60º Chrome w/White Ring
E429C1635W2 LED 18W 3500K 1600 lm 60º All White
E429C1635B2 LED 18W 3500K 1600 lm 60º Black w/White Ring
E429C1635C2 LED 18W 3500K 1600 lm 60º Chrome w/White Ring
E429C1640W2 LED 18W 4000K 1600 lm 60º All White
E429C1640B2 LED 18W 4000K 1600 lm 60º Black w/White Ring
E429C1640C2 LED 18W 4000K 1600 lm 60º Chrome w/White Ring
E429C1650W2 LED 18W 5000K 1600 lm 60º All White
E429C1650B2 LED 18W 5000K 1600 lm 60º Black w/White Ring
E429C1650C2 LED 18W 5000K 1600 lm 60º Chrome w/White Ring
E429C16SDW LED 18W SunsetK 1600 lm 60º All White
E429C16SDB LED 18W SunsetK 1600 lm 60º Black w/White Ring
E429C16SDC LED 18W SunsetK 1600 lm 60º Chrome w/White Ring
