Elco E2L10F27W 2″ Round Reflector Teak LED Light Engine

$56.64
$56.64 $80.91
Skip to product information
Elco - 2 Round Reflector Teak LED Light Engine - Ready Wholesale Electric Supply and Lighting
  • Elco - 2 Round Reflector Teak LED Light Engine - Ready Wholesale Electric Supply and Lighting
  • Elco - 2 Round Reflector Teak LED Light Engine - Ready Wholesale Electric Supply and Lighting
Elco E2L10F27W 2″ Round Reflector Teak LED Light Engine

Elco E2L10F27W 2″ Round Reflector Teak LED Light Engine

$56.64
$56.64 $80.91
10.5 - 12.5W, 2700K - SunsetK, 800 - 1000 lm - 850 - 1100 lm

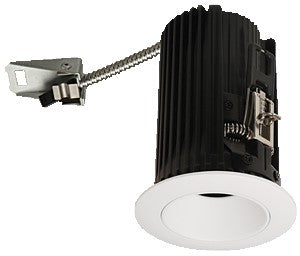

The Teak™ LED light engine is an IC Rated diecast construction specification grade 2″ LED downlight. Boasting an output up to 1100 lumens - more than a traditional 75W MR16 halogen lamp. Style options, beam options and color finish options offer maximum flexibility in design. Drivers and housings are specified separately for maximum flexibility per your project’s needs. The patented engine offers auto release clips that make installation a breeze.
  • Dimmable ELV, Triac or 0-10V depending on driver used.
  • Same LED light engine for 850 and 1100 lumens (see housings)
  • UL Listed for Direct Contact with insulation
  • Works with compatible ceilings up to 1¼″
  • Height allows for use in ceilings with under 5" depth. Ceiling thickness can be reduced from fixture depth.
  • 38° Standard beam with optional 28° and 60°
  • Wet Location Rated for Indoor and Outdoor Use
  • JA8-2016-E, UL, and Energy Star Qualified
  • Life Span 50,000 Hours L70
  • U.S. Pat. 10,125,959

Elco - 2″ Round Reflector Teak LED Light Engine

Resources & Downloads

  • Specifications
  • PDF icon The Teak System
  • PDF icon New Teak System - 2" LED Downlights & Adjustables
  • PDF icon Dimmer_Teak_System
  • IES Files
  • Binary Data E2L10F30 (with E2L08RIC) IES File
  • Binary Data E2L10F30 (with E2L11RIC) IES File



Product SKU

Catalog Number Lamp type Wattage CCT Lumens Beam Angle Finish
E2L10F27W LED 10.5 - 12.5W 2700K 850 - 1100 lm 38° White
E2L10F30W LED 10.5 - 12.5W 3000K 850 - 1100 lm 38° White
E2L10F35W LED 10.5 - 12.5W 3500K 850 - 1100 lm 38° White
E2L10F40W LED 10.5 - 12.5W 4000K 850 - 1100 lm 38° White
E2L10FSDW LED 10.5 - 12.5W SunsetK 800 - 1000 lm 38° White
E2L10F27B LED 10.5 - 12.5W 2700K 850 - 1100 lm 38° Black/White
E2L10F30B LED 10.5 - 12.5W 3000K 850 - 1100 lm 38° Black/White
E2L10F35B LED 10.5 - 12.5W 3500K 850 - 1100 lm 38° Black/White
E2L10F40B LED 10.5 - 12.5W 4000K 850 - 1100 lm 38° Black/White
E2L10FSDB LED 10.5 - 12.5W SunsetK 800 - 1000 lm 38° Black/White
E2L10F27BZ LED 10.5 - 12.5W 2700K 850 - 1100 lm 38° All Bronze
E2L10F30BZ LED 10.5 - 12.5W 3000K 850 - 1100 lm 38° All Bronze
E2L10F35BZ LED 10.5 - 12.5W 3500K 850 - 1100 lm 38° All Bronze
E2L10F40BZ LED 10.5 - 12.5W 4000K 850 - 1100 lm 38° All Bronze
E2L10FSDBZ LED 10.5 - 12.5W SunsetK 800 - 1000 lm 38° All Bronze
E2L10F27C LED 10.5 - 12.5W 2700K 850 - 1100 lm 38° Chrome/White
E2L10F30C LED 10.5 - 12.5W 3000K 850 - 1100 lm 38° Chrome/White
E2L10F35C LED 10.5 - 12.5W 3500K 850 - 1100 lm 38° Chrome/White
E2L10F40C LED 10.5 - 12.5W 4000K 850 - 1100 lm 38° Chrome/White
E2L10FSDC LED 10.5 - 12.5W SunsetK 800 - 1000 lm 38° Chrome/White
E2L10F27H LED 10.5 - 12.5W 2700K 850 - 1100 lm 38° Haze/White
E2L10F30H LED 10.5 - 12.5W 3000K 850 - 1100 lm 38° Haze/White
E2L10F35H LED 10.5 - 12.5W 3500K 850 - 1100 lm 38° Haze/White
E2L10F40H LED 10.5 - 12.5W 4000K 850 - 1100 lm 38° Haze/White
E2L10FSDH LED 10.5 - 12.5W SunsetK 800 - 1000 lm 38° Haze/White
E2L10F27BB LED 10.5 - 12.5W 2700K 850 - 1100 lm 38° All Black
E2L10F30BB LED 10.5 - 12.5W 3000K 850 - 1100 lm 38° All Black
E2L10F35BB LED 10.5 - 12.5W 3500K 850 - 1100 lm 38° All Black
E2L10F40BB LED 10.5 - 12.5W 4000K 850 - 1100 lm 38° All Black
E2L10FSDBB LED 10.5 - 12.5W SunsetK 800 - 1000 lm 38° All Black
