EMCOD MLE80-24DC-UD - 80W 24V DC- Dimmable Electronic LED Driver
$109.59
Sale price
$109.59
Regular price
$144.20
 E498696
|
Conforms to UL STD. 8750 and 1310 |
| Certified to CSA STD. C22.2 № 250.0 |
|
| model MLE80-24DC-UD | |
|
Spec Sheet Installation Instructions |
Transformer

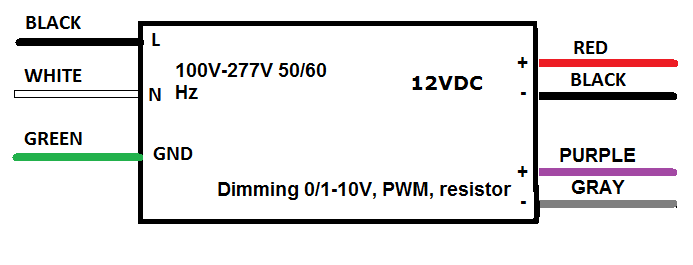

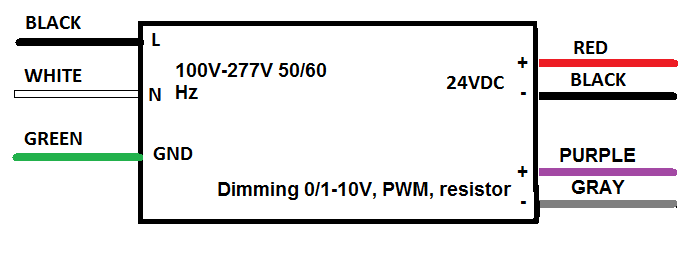

Dimmable with triac forward and reverse phase, 0/1-10V , resistor, PWM
Input leads are 18AWG 600V
Output leads are 16AWG 300V
Leads max. operational temperature is 105°C
Housing
The actual transformer 80W is encapsulated in the enclosure
The enclosure is Black Powder Coated Steel, NEMA 3R rated
Wiring compartment has 6 knockouts sizes for 3/8 inch screw cable
connectors
Enclosure Temperature does not exceed 70°C at 45°C ambient and fully
loaded
Dimensions (inch): H = 5.16, W = 7.73, D = 1.54
Weight (LBs): 3
Electrical Parameters
| Input Voltage: | 100-277V 50/60Hz |
| Max. input current: | 0.8A at full load |
| Output voltage without load: | 24.1VDC |
| Output voltage fully loaded: | 24VDC |
| Max. Total Wattage: | 80W |
| Max. Output Current: | 3.3A |
| Efficiency: | 90% |
| Load regulation: | 1% |
| Ripple: | 5% |
