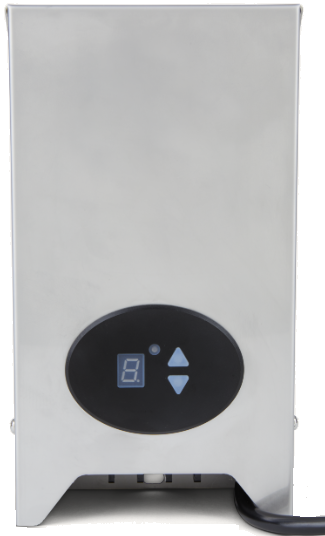

EMCOD SS200W Magnetic Outdoor Non Dimmable Stainless Steel Enclosure

Multi Tap: 12VAC and 15VAC
Total Wattage: 200W max
Input Voltage: 120V 60Hz

Transformer
Non Dimmable
Temperature class B(130°C)
Input leads: Line cord
Output leads: Terminal Block
Thermal manually reset secondary breaker 20A
Timer and photocell build in options

Housing
The actual transformer 200W is encapsulated in the enclosure
The enclosure is Stainless Steel, NEMA 3R rated
Enclosure Temperature does not exceed 70°C at 45°C ambient and fully loaded
Dimensions (inch): H = 8.47, W = 5.31, D = 3.65 Weight (LBs): 8.16
