Core Lighting RGB CT-330 RGB MINI TOUCH SERIES CONTROLLER
Core Lighting RGB CT-330 RGB MINI TOUCH SERIES CONTROLLER
RGB CT-330
RGB MINI TOUCH SERIES CONTROLLER

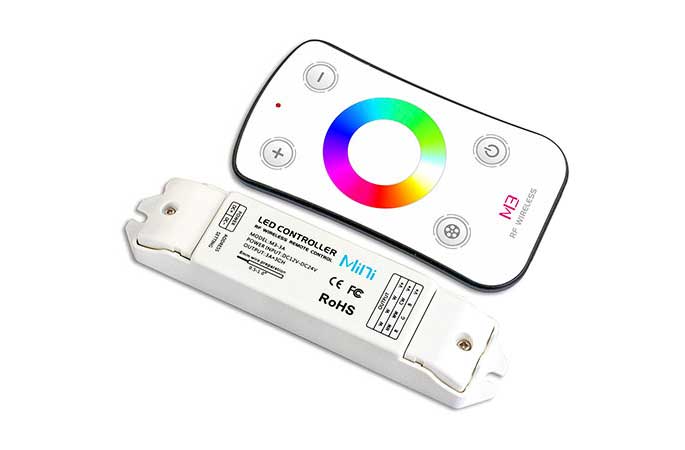

The RGB CT-330 MINI Touch Series RGB Control Kit is an all in one RGB (Red/Green/Blue) LED Controller & Dimmer. This handheld RF Remote features a color wheel for easy color selections. The Controller also provides options for several static Single Color modes or 7 dynamic color-changing modes with speed, dimming, ON/OFF controls. Compatible with any 12V / 24V DC RGB LED products.
■ Slim, lightweight and easy to carry handheld remote.
■ Up to 98 Ft. remote distance.
■ One receiver compatible with 6 different remote functions.
■ Dimming, RGB and Color Temperature control.
■ Automatic sleep Mode
■ Automatic Standby Mode to extend battery life.
QUICK SPECS (RGB CT-300 HANDHELD REMOTE)
| VOLTAGE | DC3V (CR2032) |
| WORKING FREQUENCY | 433.92 MHz |
| REMOTE DISTANCE | 40-50 M |
| WORKING TEMP | -20ºC~55ºC |
| DIMENSIONS | L x W x H (104mm x 60mm x 9mm) |
| NEW WEIGHT | 42g |
QUICK SPECS (RGB CT-300 CONTROLLER)
| POWER INPUT | 12V-24V DC |
| MAX CURRENT LOAD | 3A x 3CH Max |
| MAX OUTPUT POWER | 108W (12V) / 216W (24V) |
| WORKING TEMP | -30ºC~55ºC |
| DIMENSIONS | L x W (30mm x 20mm) |
| NEW WEIGHT | 47g |
